Wireless Control System

 Wireless Luminaire Based Sensor Control System

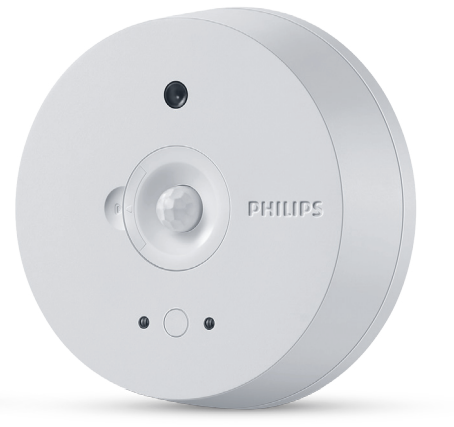

  • The Philips ActiLume lighting control system consists of a small, lightweight sensor and controller designed for easy integration into luminaires.

  • With the ActiLume Wireless 1-10V system cubicles/free floor-standing and suspended luminaires can be easily linked to form one system without any expensive cabling costs/loss of flexibility which will be needed later on.

  • The wireless network is based on the ZigBee standard. ZigBee creates a robust, secure and fine-mesh network that supports low data rate communication, ensuring a long battery life for battery-operated devices.

  • Up to 16 wireless devices can be connected in a wireless network.

  • The features of the ActiLume 1-10 V sensor are still in place: adjustment of light sensing within a range from 1/3 to 3; customized delay time between 1 and 30 minutes; activating 100 hours burn-in.

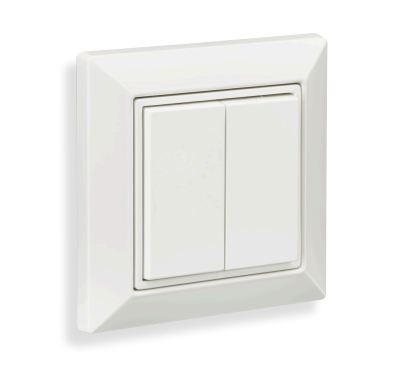

  • Individual override via personal control by means of the Touch and Dim functionality on the Switch Box, or with the wireless remote control over the various devices within the network.
